3A Sanitary Pumpen

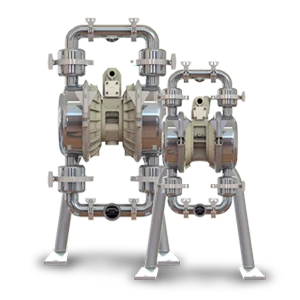

The Elima-Matic® sanitary pump has been designed to the 3A Sanitary Standards for Air or Hydraulically Driven Diaphragm Pumps for Milk and Milk Products, Number 44-01. Available in 1-1/2" and 2" sizes, sanitary pumps are available with the Versa-Sense leak detection system, which protects the product from contamination in the event of a diaphragm failure.

Elima-Matic® Sanitary Pumps:
Feature a surface finish of 32 µin (0.8 µm) or better on product contact surfaces and external surfaces
Assemble and disassemble quickly with tri-clamp connections and
wing-nut clamp bands
Include a rotating pump stand enabling a 180° rotation of pump for easy draining
Select a pump type to display the corresponding specifications and performance charts below.

E4 3A |

E2 3A

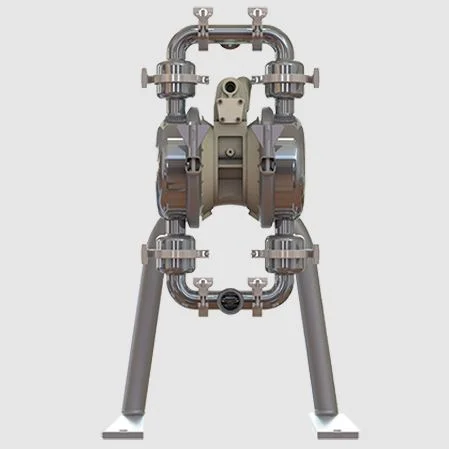

E2 SPECIFICATIONS: 2”
3-A Certified with Metal Center Section
Flow Rate: Adjustable to 0-147 gpm (556 lpm)
Port Size: Suction . 2” TRI-CLAMP
Discharge: . 2” TRI-CLAMP
Air Inlet . 1/2” NPT /  3/4”NPT (Stainless Steel Centers ONLY)
Air Exhaust . . . . . . . . . . . . . . .1” NPT
Suction Lift:
  • Dry . 9’ (2.7 m)
  • Wet . 27’ (8.2 m)
Max Solid Size (Diameter): . 5/8” (15.8 mm)
Max Noise Level . . . . . . . . . 98 dB(A)
Shipping Weights: Stainless 125 lbs (56.7 kg)
